Container Transportation Truck Trailers Customizable Double Trailer Trains

Name: Container Transportation Truck Trailers Customizable Double Trailer Trains
Brand: HuaXiang
Price: 28 USD

Quality Container Transportation Truck Trailers Customizable Double Trailer Trains for sale

Place of Origin : Shandong, China, Shandong, China

Brand Name : HuaXiang

MOQ : 3 sets

Price : $28,000.00/sets 3-5 sets

Use : Truck Trailer, Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 14000*2550*1200mm, Customizable

Max Payload : 150T

Axle : 16T

Suspension : Mechanical Suspension/Air suspension

Color : Customers Optional

Production time : 15 workdays

Contact Now

Container Transportation Truck Trailers Customizable Double Trailer Trains

Product description

3Axles New Flatbed Semi Trailer adopt advanced design concept. flat bed trailer can be used to transport containers ,bulk cargo and other goods , and we also can according to your requirements to make this trailer.After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

Product parameters

Overall Dimensions	Front :14000x2600 Rear :12780x260
Girder	Front Car: Upper Buy Plate 18mm, Lower Xing Plate 20mm Vertical Plate 12mm Height 580mm Rear Car: Upper Wing Plate 18mm, Lower Wing Plate 20mm Vertical Plate 12mm Height 580mm Wing Plate Quality :Q365: Web Material 700l
Axle	Factory Bridge, Normal Wheel Base 1850, 16ton No Abs And Brake Adjusting Arm /3/ Set
Tire	Factory With 12.00r20 Grain Smooth Flower 24Pcs
Rim	8x18(Steel)/24/ Pcs
Plate Spring	10 Pieces 16mm*120m/12/ Frame
Suspension	Factory With Reinforced Type
Bottom Plate	3mm Thick Pattern Steel Plate
Front Stop	Flat Type Ladder And Frame
Side Beam	180mm High Channel Steel Q355
Beam	120mm Through Beam
Type/Quantity Of Lock Heads	Front And Rear Vehicles Can Transport 1 40-Foot Non-Standard Container Respectively, And Can Also Transport 2 20-Foot Standard Containers Respectively
Poise Paint	Frame Sandblasted, Urethane Primer, Urethane Topcoat, Or powder, Color To Be Determined
Legs	28 Tons Single Action/1/Set
Traction Pin	Front Car 90# Welding Type/16mm/1/Unit, Rear Car 90# Welding Type/12mm/1/Unit
Brake Air Chambers	12 Double Chambers/Unit
Brake Valve	Domestic 6 Holes/1/Set
Spare Tire Rack	Wire Rope Type chain type
Toolboxes	With Side 1.6m Toolbox//Bench: (One On Each Front And Back)
Rope Tensioner	Standard
Circuit gas circuit	24 Volt Electrical Ik, 7-Pin Jack, Sealed Wiring Harness,Standard with iron Horse brand
Fenders	Front Rubber. Iron Rear
Rear Protective Net	Weekly Style
Saddle	Reinforced 90# Saddle/1

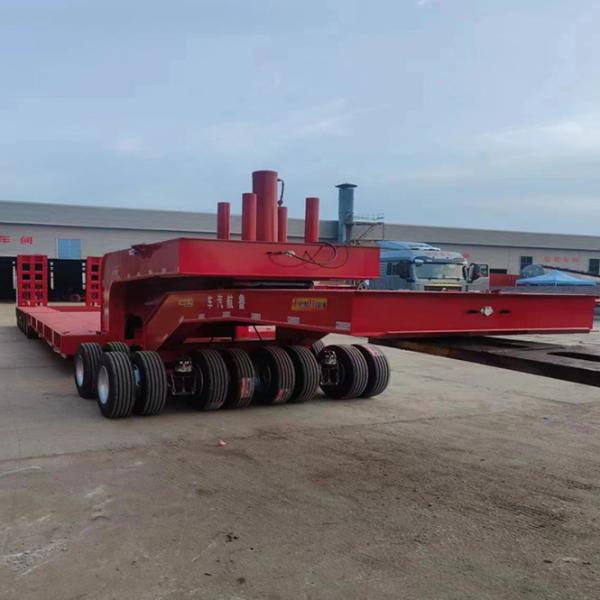

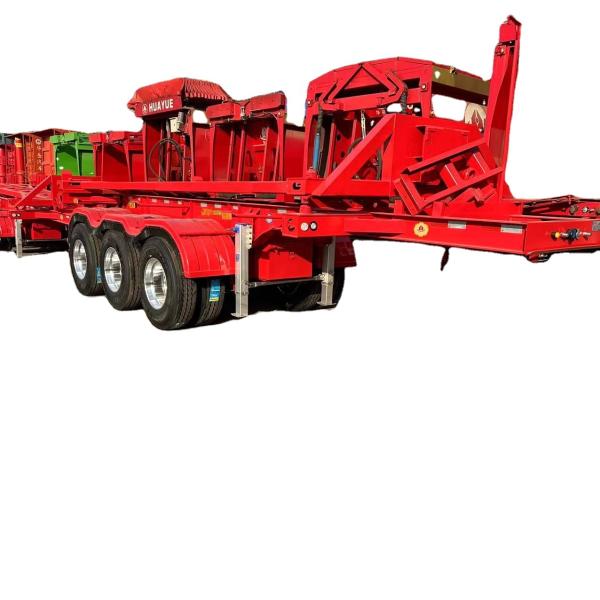

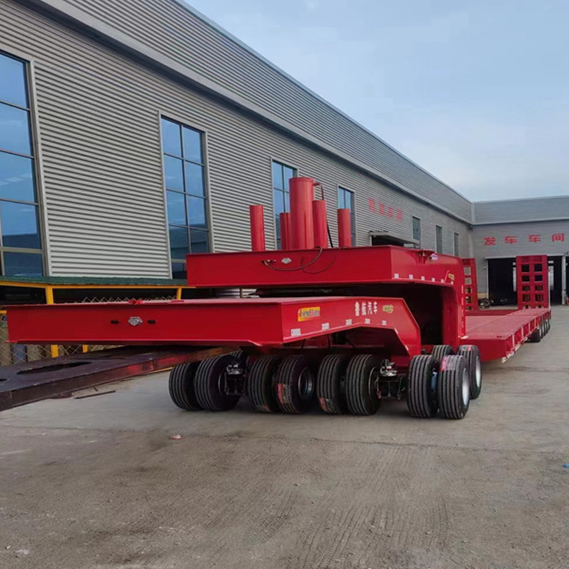

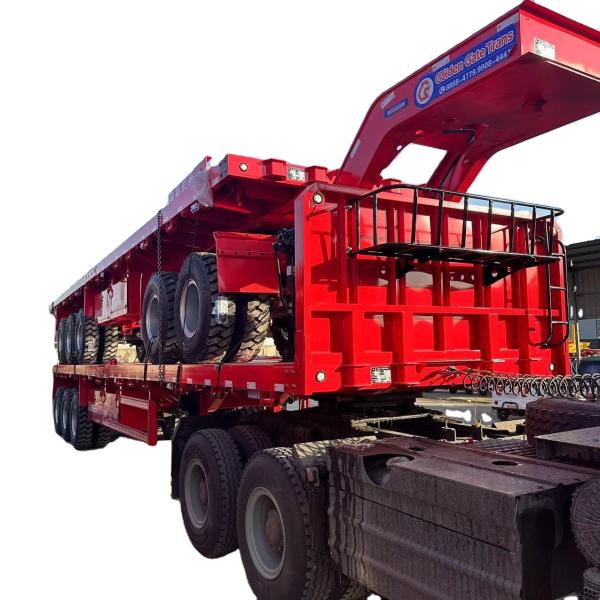

Product display

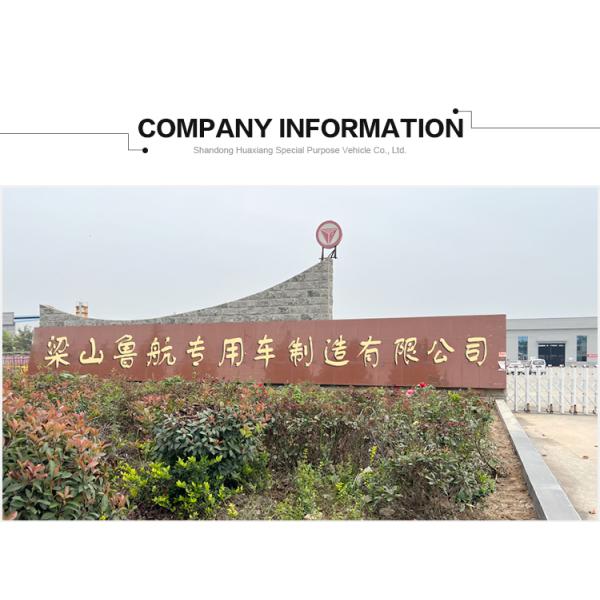

Company information

Shandong Huaxiang Special Purpose Vehicle Co., Ltd. is an advanced domestic semi-trailer manufacturer. The company specializes in the production and research and development of land transportation, sea transportation, blade transport vehicles, embarrassed semi-trailers, tower transport vehicles, SPMT self-propelled, axis cross block splicing, bridge transport vehicles, flatbed semi-trailers, special low-flat semi-trailers, fence semi-trailers, Oil tank trucks, dump semi-trailers, export-specific semi-trailers, full trailers, trailer accessories, etc. With advanced technology, reliable quality and perfect service, we are also exporting to all over the world. We have successfully sold to Russia, five Central Asian countries, Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Vietnam and more than 60 countries. Huaxiang semi-trailers have established long-term and stable cooperative relationships with various customers, and their products have been unanimously recognized and praised.

FAQ

1. who are we? We are based in shandong, China, start from 2016,we have successfully sold to Russia, five Central Asian countries, Ghana, Zimbabwe, Zambia, Tanzania, Sudan, Nigeria, Vietnam and more than 60 countries. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Blade transporter, helter-skelter semi-trailer, tower transporter, SPMT self-propelled, axis cross-block splicing, bridge transporter, flatbed semi-trailer, special low-flat semi-trailer, fence semi-trailer, oil tanker, dump semi-trailer, export Special semi-trailers, full trailers, trailer accessories, etc. 4. why should you buy from us not from other suppliers? ` Over 20 years experience in R&D and manufacturing of semi-trailers. ` Strong delivery ability. ` Sales and after-sales service agencies in Australia, Africa, and southeast Asia. ` 20 years experience in road transport solutions. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,MoneyGram,Western Union,Cash; Language Spoken:English,Chinese
